DW Guardian 38 Super Project
So maybe if Keith won't make me a Guardian in 38 Super then I'll have to do it myself. Here is what I am doing ... hope you find it interesting.

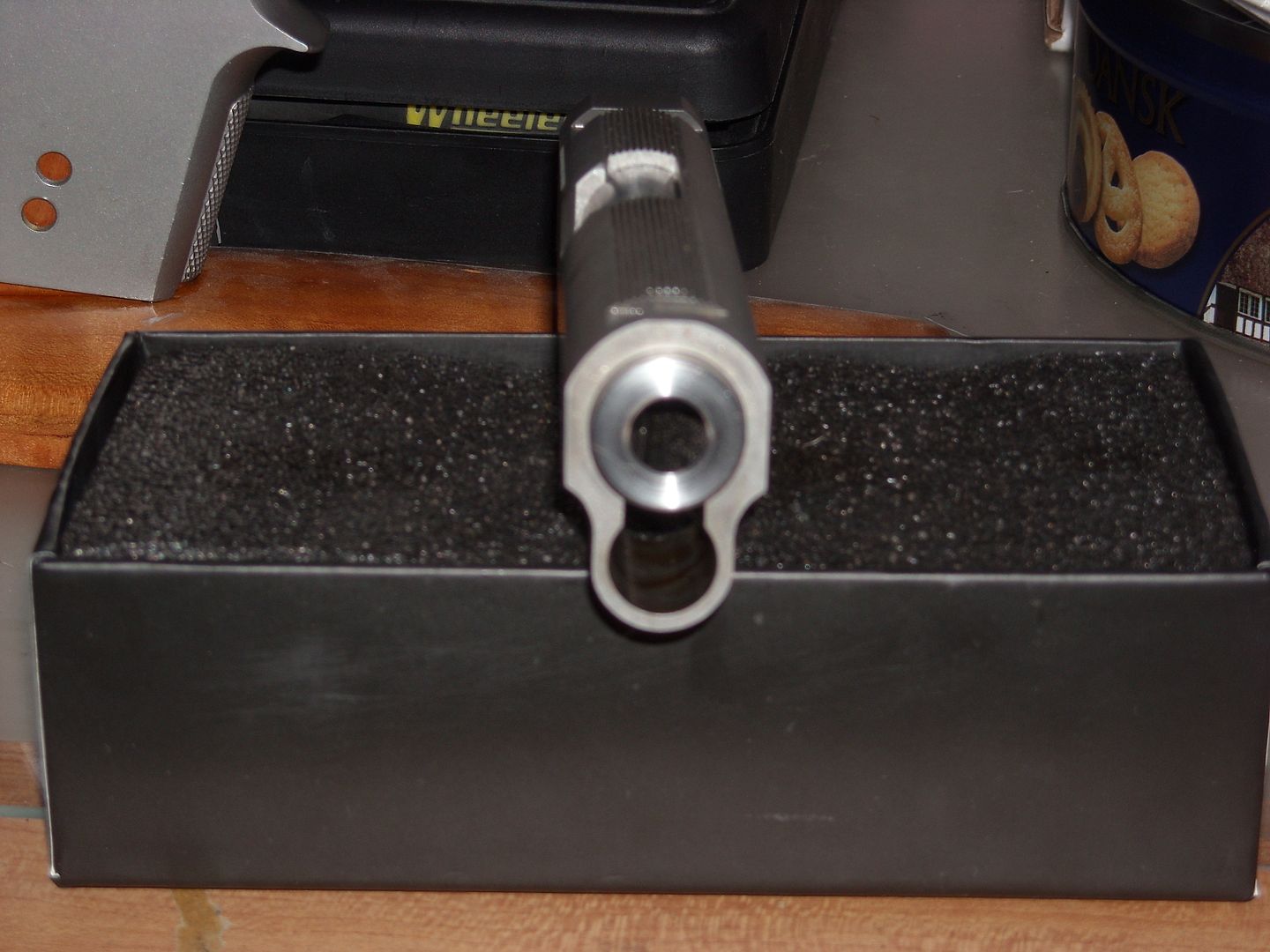

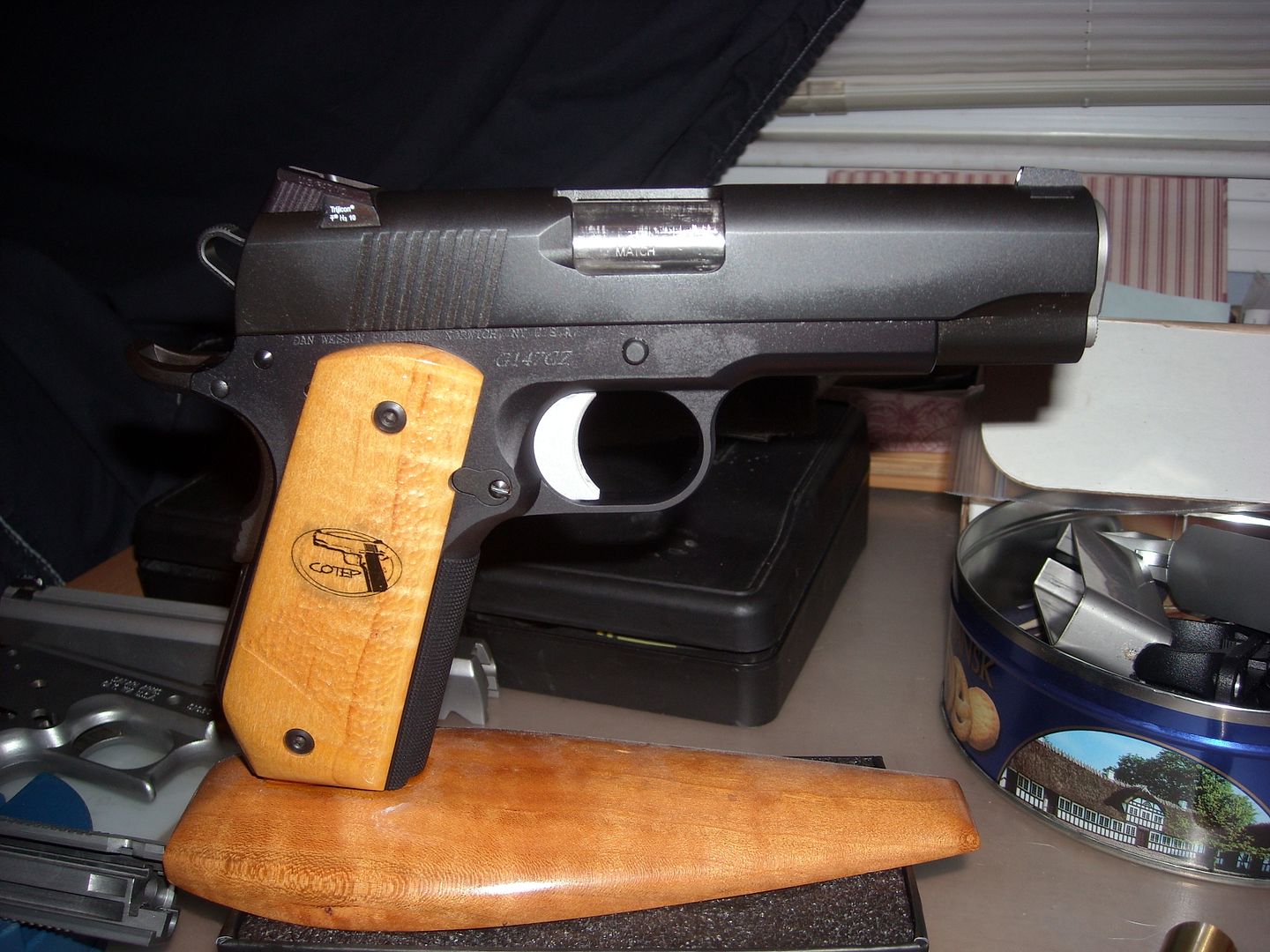

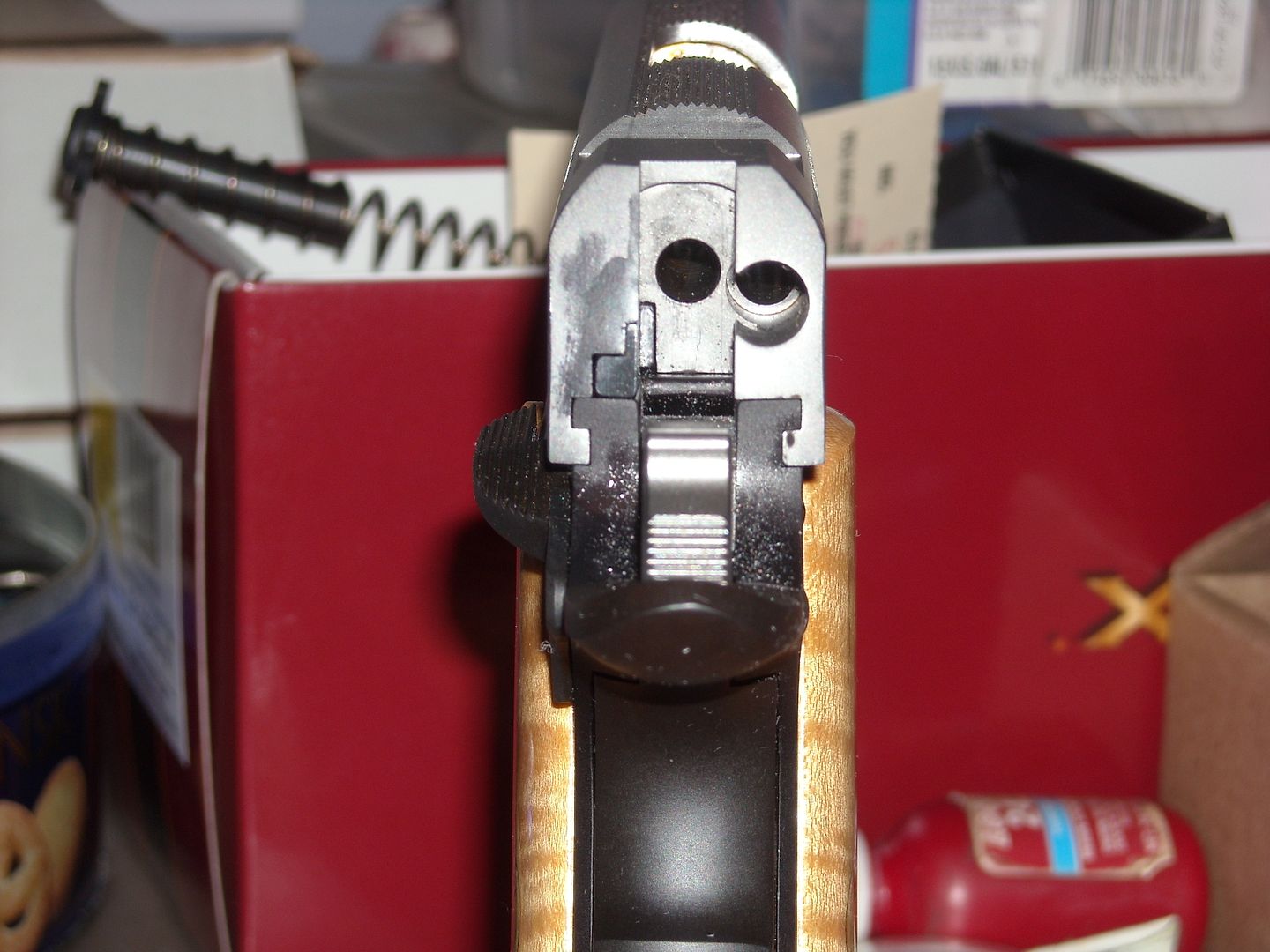

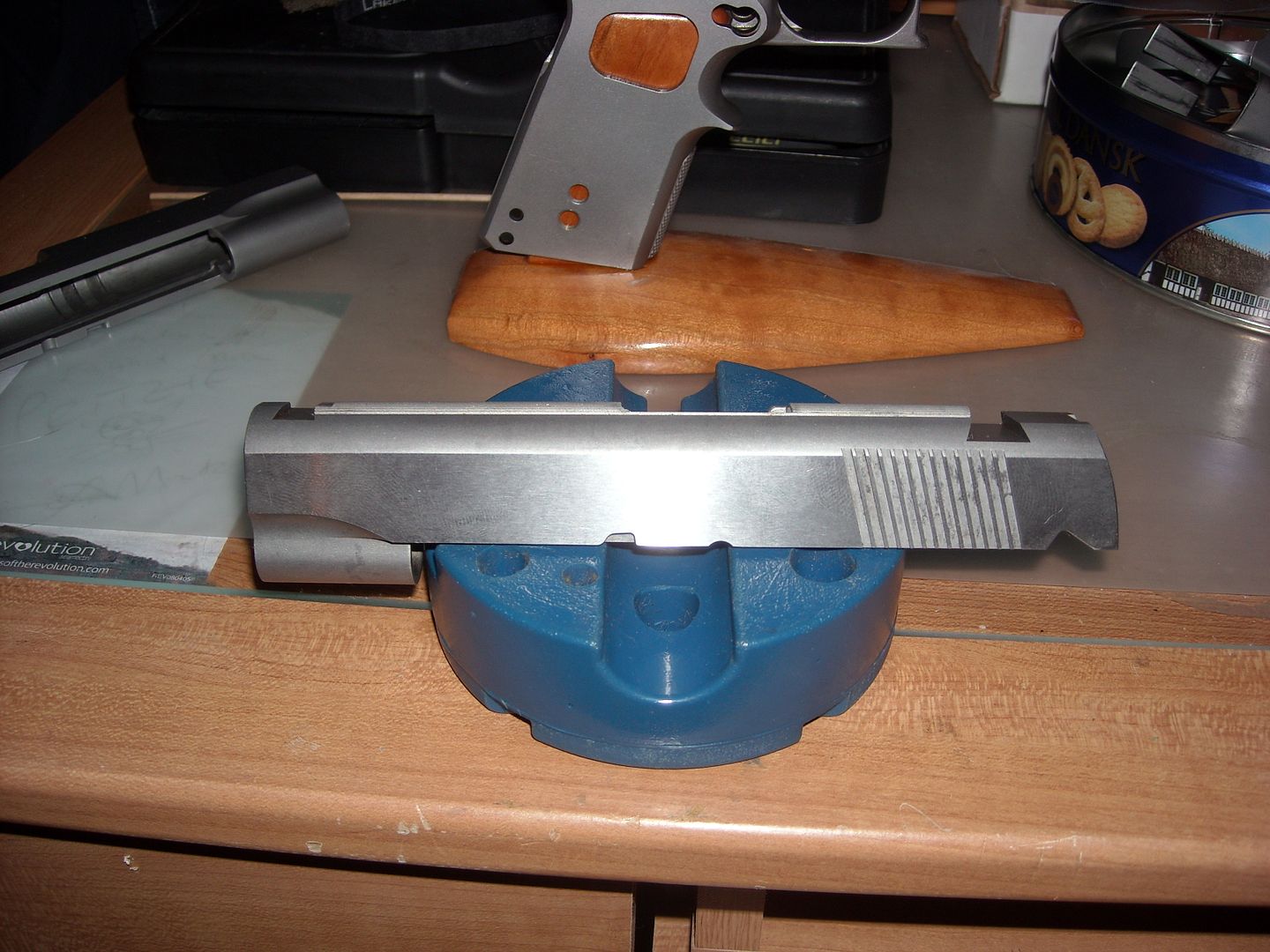

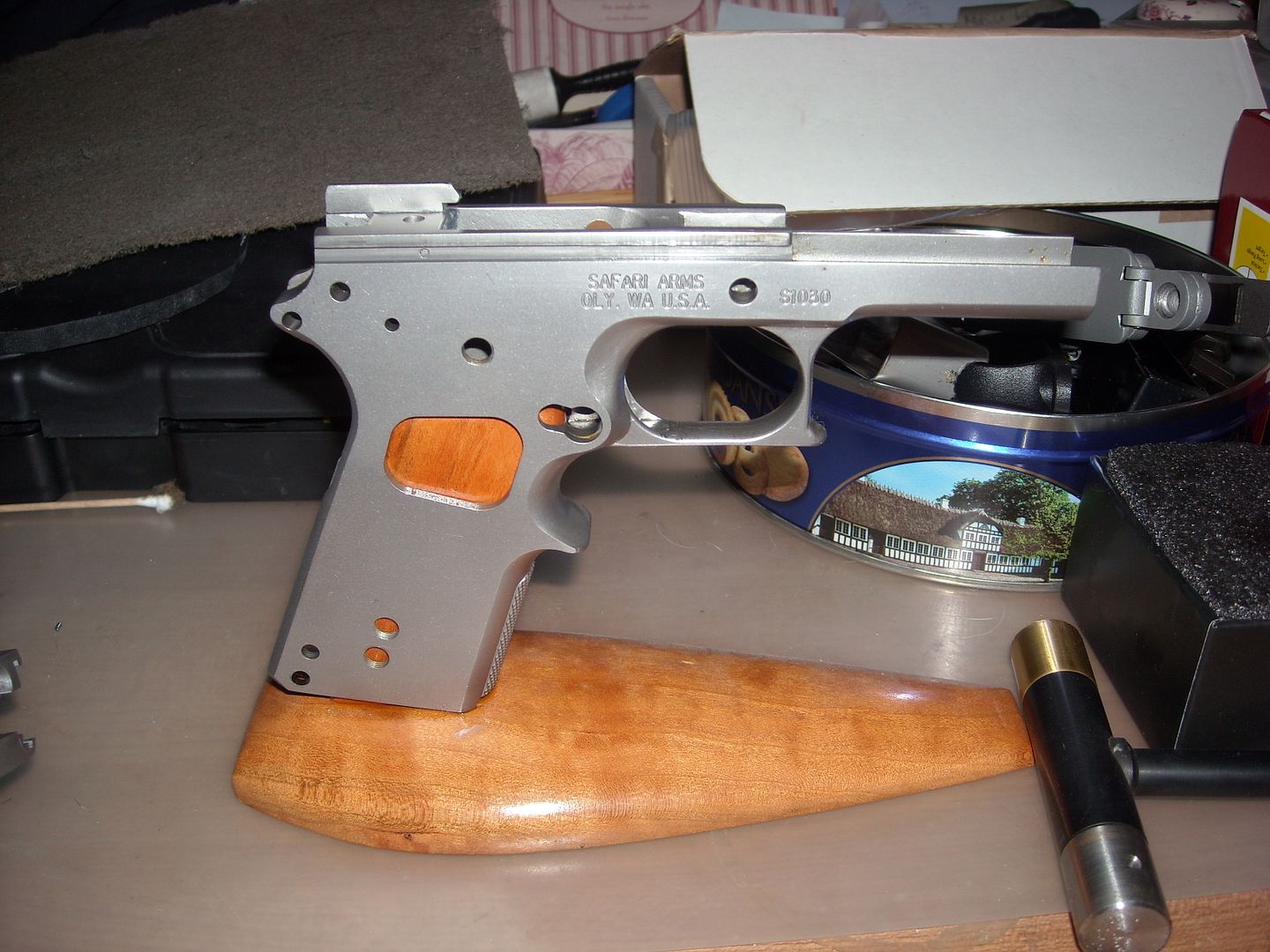

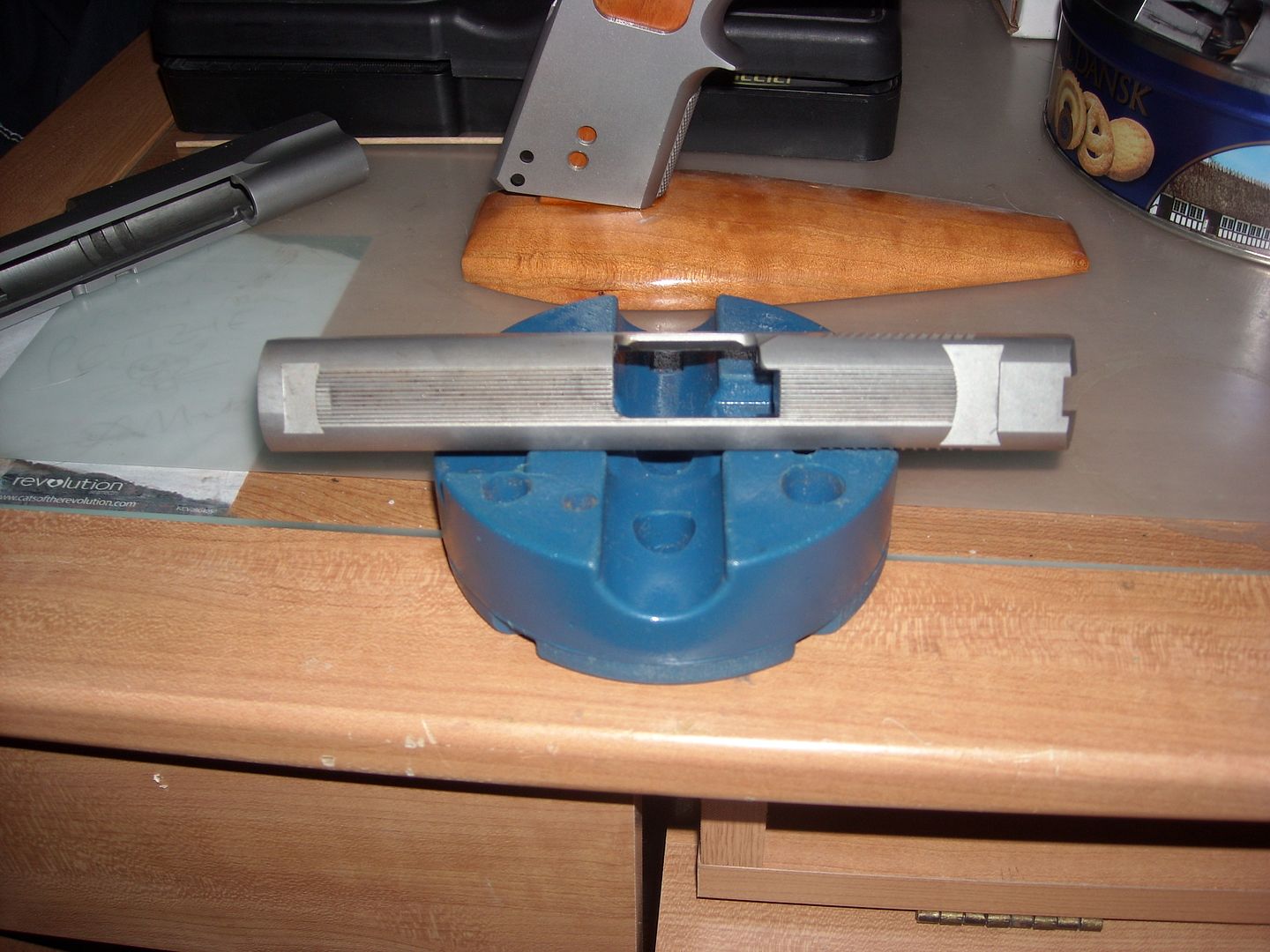

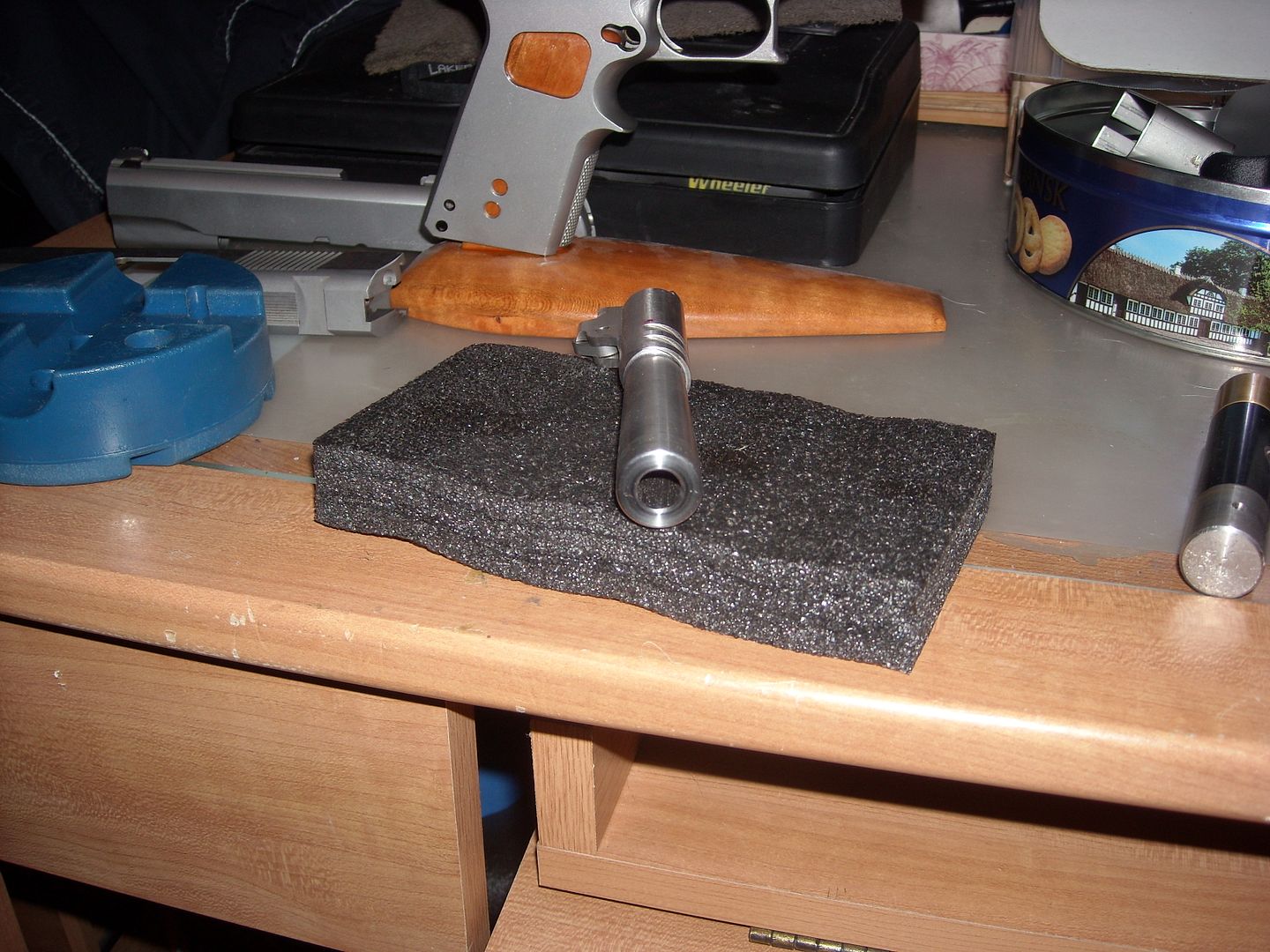

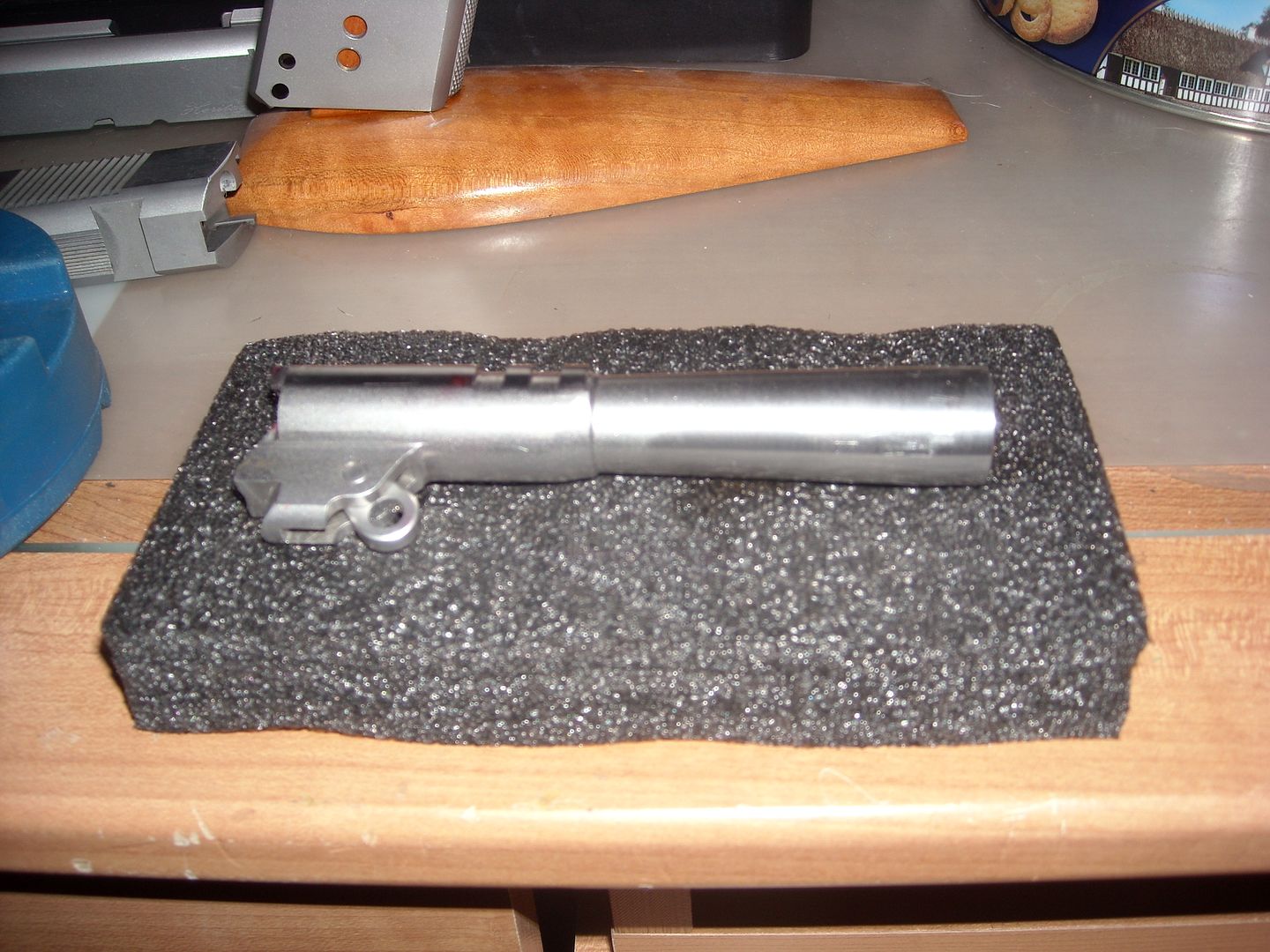

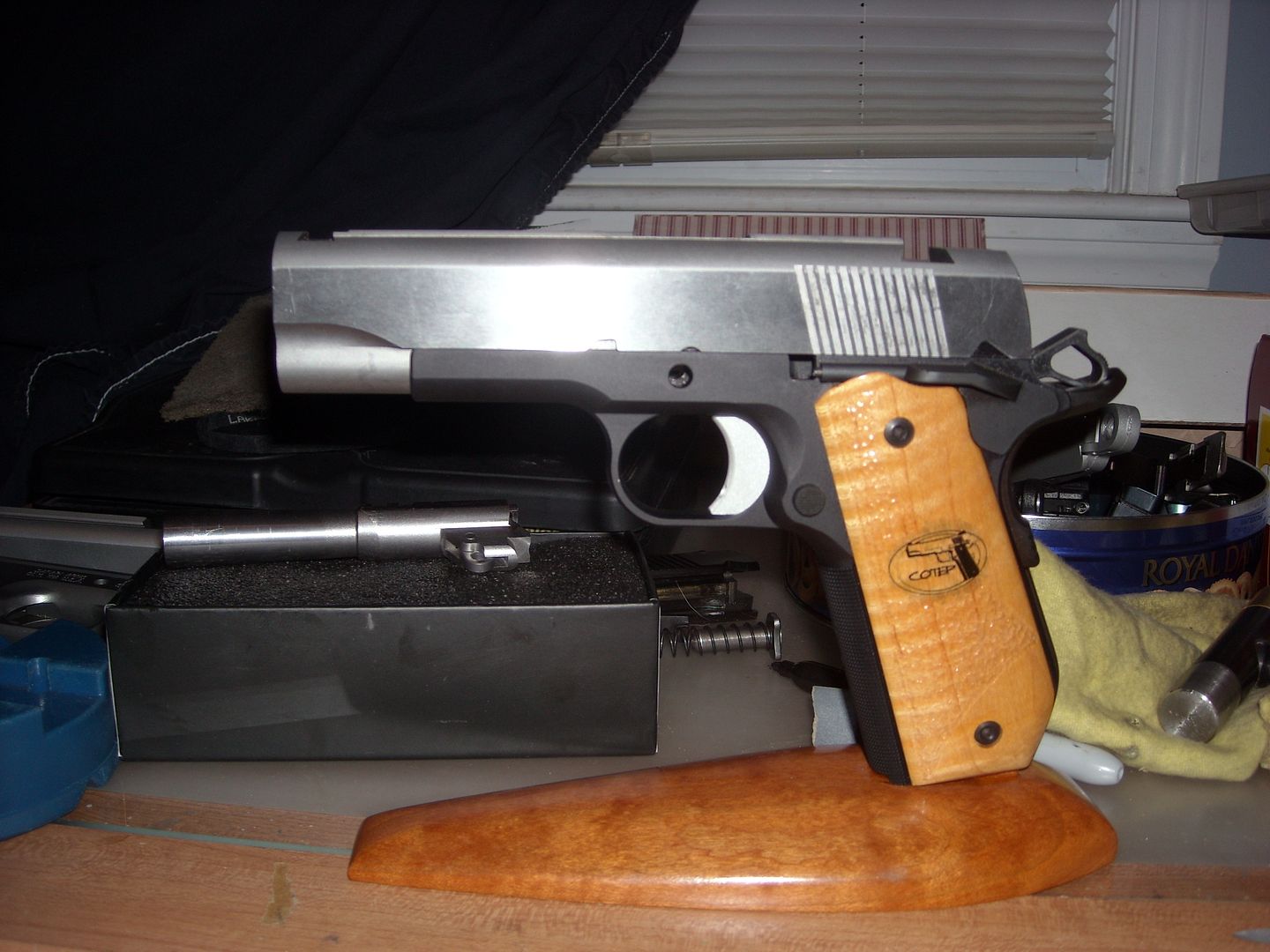

First ... The Guardian in 9mm ... Yes, those are COTEP grips:  I decided to go with a new slide (Fusion - flat topped and serrated) ... It looks like this:   For a barrel. I went with a Storm Lake Bull Barrel in 38 Super:   I fit the barrel to the slide (tightly) knowing it will need more fitting when I get the slide fit to the frame:   in order to get the slide to fit the frame (it was super tight) and not wanting to ruin the fit and finish on the base Guardian, I used a sacrificial slide I had lying around. Here she is ... an old Safari Arms slide that I use with a Tac Sol 22 conversion. My arms were tired from all the lapping:  Ok ... the slide fits ... and fits pretty good I might add. I had to work down the ejector to create clearance there and may need to change out the ejector altogether to get it to run right. We'll see:   Now, the link doesn't line up with the slide stop pin so more fitting is required. Also, Because it is a Bull Barrel, I have to mill away some clearance (.085") on the back of the dust cover to fit the reverse plug. Plenty more work to do. I will update this thread as I go (slowly). Let me know if there is anything in particular would might want to see. Suggestions on a finish would be helpful too ... slide is carbon steel, not stainless.
__________________
Mike Addicted to Pulling the Trigger!  COTEP No. 0265
Last edited by MPrimo; 02-26-2012 at 07:52 PM.
|
| The Following User Says Thank You to MPrimo For This Useful Post: | ||
NAMVET72 (02-27-2012) | ||
|
#3
02-26-2012, 07:44 PM
|
|||||
|
|||||
|
Looking great Mike!!!
__________________
"This is the 44 Magnum AutoMag and holds a 300 grain cartridge and if properly used can remove the fingerprints"!! COTEP # CBOB0152
|
|
#4
02-27-2012, 05:13 AM
|
|||||
|
|||||
|
+1 on what Daed said above. When we shot together and you told me about some of your tools (ultrasonic and blaster).... I thought "this guy's serious about his firearms"... But to embark on a project like this? I can't wait to see the results! Wait... scratch that... I can't wait to SHOOT the results of your work!
Dafadda
__________________
COTEP: CBOB578 DW CCO SIG GSR 1911 SA Micro Compact and a spectacular cast of others! "You have never lived, until you have almost died. And for those who fight for it, life has a flavor that the protected will never know." Guy de Maupassant, 1893. Anonymously, penned on a sign at a command post at Khe Sanh, RVN.
|
|
#5
02-27-2012, 07:44 AM
|
|||||
|
|||||
|
Looks great so far, keep us updated.
__________________
CBOBO555 If You Run, You'll Only Die Tired U.S.M.C. Combat Vet 64-68 Kentucky Colonel Retired Motor Officer
|
|
#6
02-27-2012, 04:26 PM
|
|||||
|
|||||
|
Very Nice can't wait to see this Project when it is over..............
